Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TONY
  • Model Number: TYJ551-II pellet mill
  • Voltage: 380V
  • Power(W): 90+0.55KW
  • Dimension(L*W*H): 2100mm*1300mm*2000mm
  • Weight: 4.5T
  • Certification: CE
  • Warranty: 1 Years Guarantee expect the wear spare parts
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 1.5-2Ton Per Hour
  • Working Life for Die: 2500-3000Hours
  • Working Life for Rollers: 1500-2000Hours
  • Color: Green and Yellow
  • Raw material: Peanut Shell
  • Application: Make Biomass Pellets
  • Usage: Biomass Energy Industry
  • Motor: Electric Motor
  • Pellet diameter: 4-12mm pellet mill
  • Bearing: HRB Bearing

Packaging & Delivery

Packaging Details Wooden case pellet mill
Delivery Time Shipped in 7 days after payment

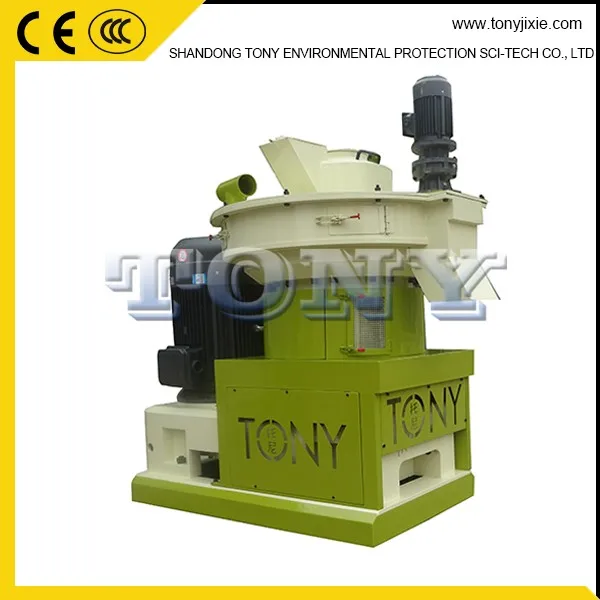

Product Description

Product Application

TONY pellet mill is a biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die Pellet Mill Machine.

Main Features

1) Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.

2) Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.

3) 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.

4) Double layers ring die type, longer working lifetime.

So, new designed vertical ring die type pellet making machine TYJ550-II ,with higher capacity 1.5-2Ton/Hour.
-----The capacity for the same model of other suppliers' is only 1-1.5Ton/Hour.

Raw Materials

Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.

Size: Less than 5mm (All the raw materials must be crushed into sawdust before going

to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15% is best for producing good quality wood pellet.

Final Pellets
Detailed Images

Machine Parts

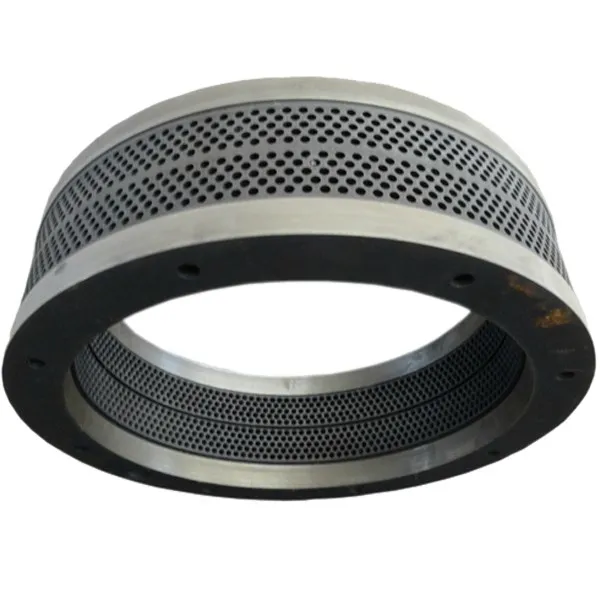

Name: Ring Die
Original: CHINA
1. Made of alloy and stainless steel;
2. The professional heat treatment processing technology can make its hardness above HRC62.
3. Vertical Ring die, feeding vertically.
4. Double-lay die, dual use. When one side is damaged, turn over and use the other side.

Main Features

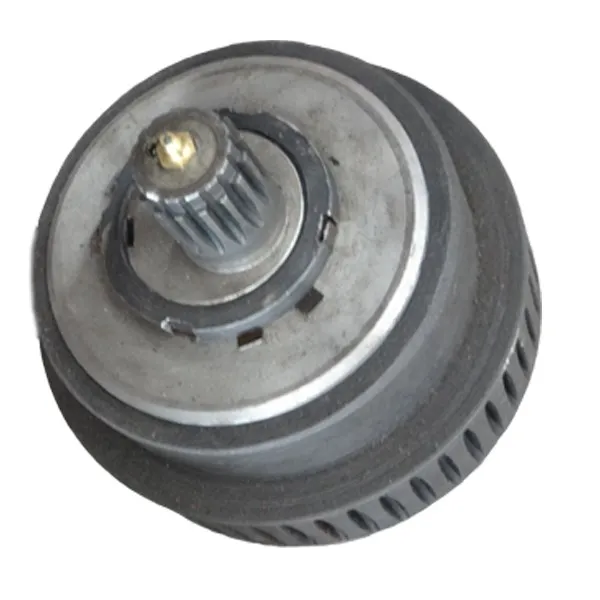

Name: Roller
Original: China
Die fixed, rollers running, materials centrifugal and evenly distributed around. Large capacity.

Machine Parts

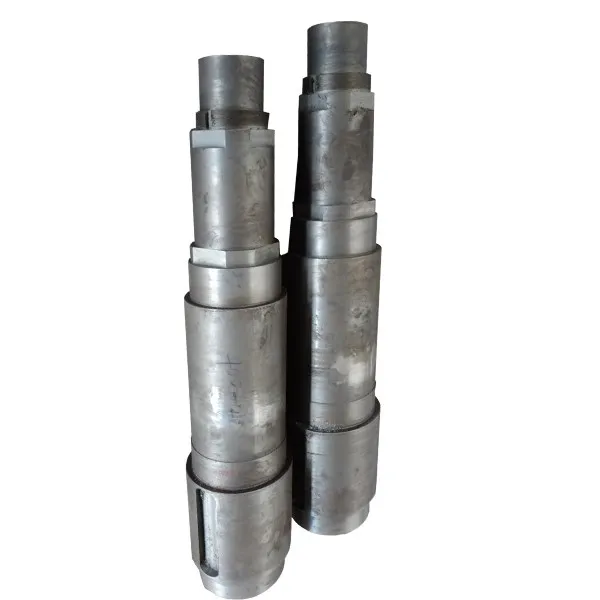

Main shaft
1,Our main shaft is forged.
2,no air insde the main shaft while being forged
3,hard to be broken while high-speed running.

Main Features

Name: Automatic Lubrication System
Original: China
1..Automatic lubricatin system for Spindle
2..Automatic lubricatin system for Roller: it can keep the pellet machine in maintenance for 24hours

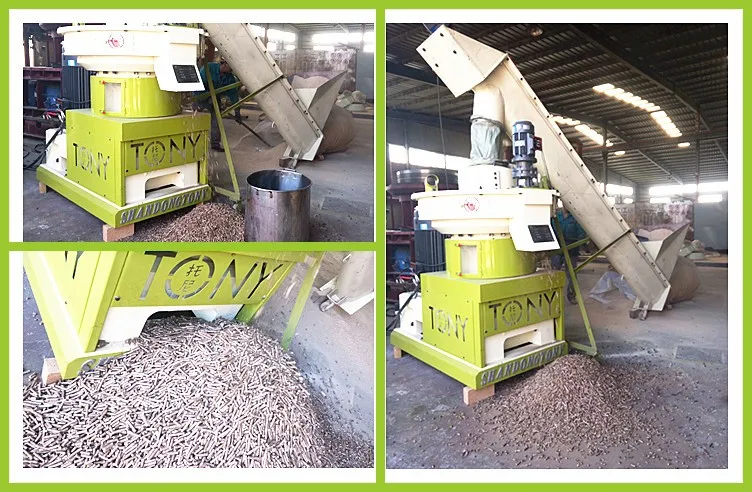

Machine Testing
Our Service

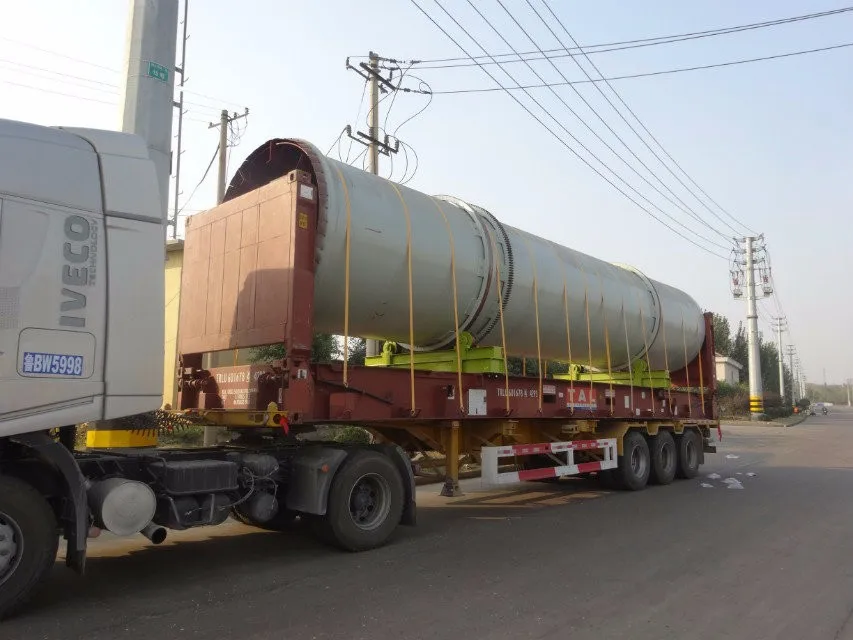

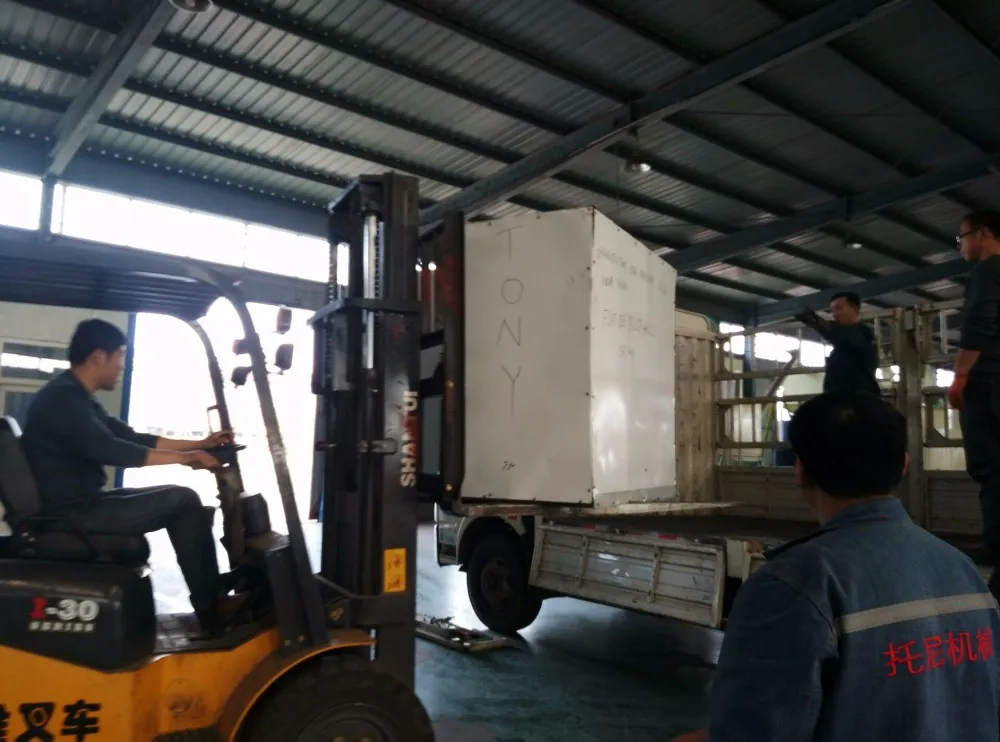

Packing & Delivery

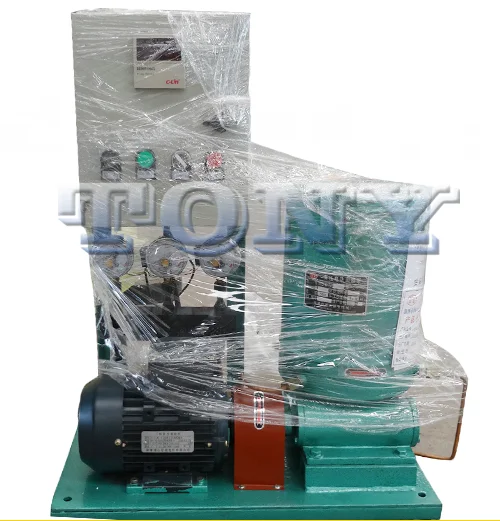

Packaging
Size
1850 (L) * 1050(W) * 1800(D)
Weight
4T



Packaging Details

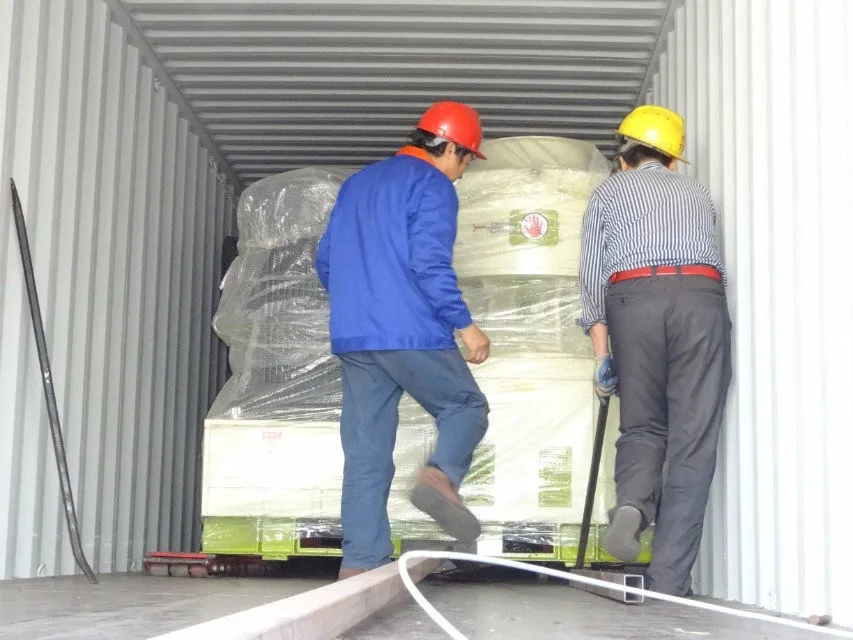

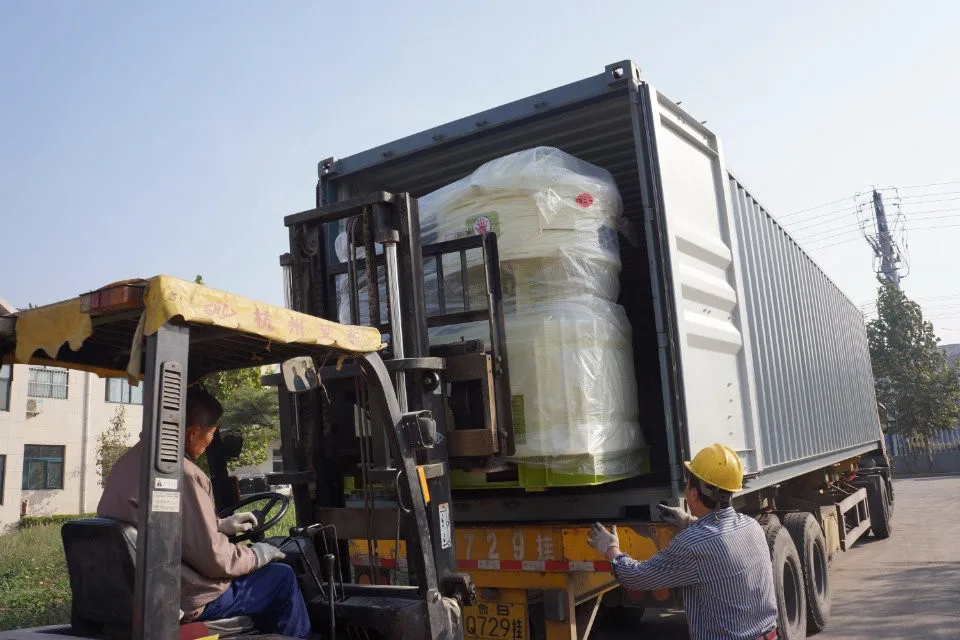

1 set of pellet machine can be packed by iron sheet and delivered by LCL

Pellet Mill in Vietnam

Delivered in March, 2014

Pellet Plant in Thailand

Delivered in August, 2015

Pellet Plant in Malaysia

Delivered in December, 2015

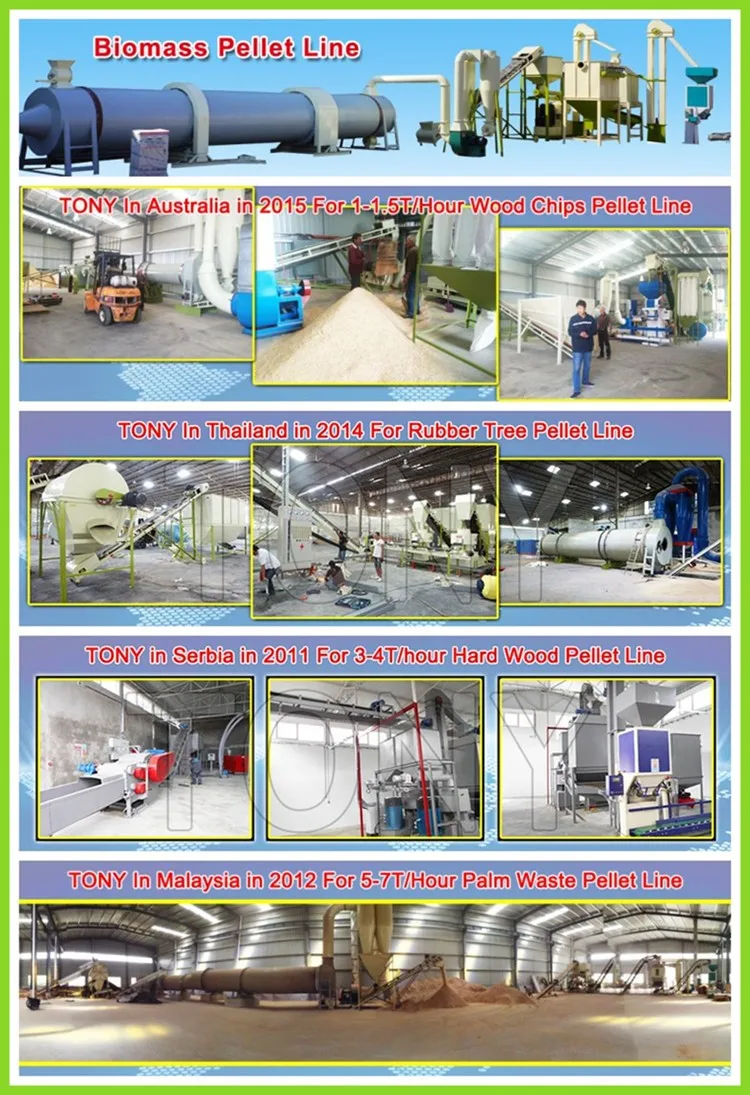

Successfull Cases



Exhibitions of ring die pellet mill machine


We mainly manufacture the pellet machines as following:
1. The SKJ Series Flat Die Pellet Machine/Feed Pellet Machine with the volume 100kg to 4 ton per hour.
2.TheTY Series Ring Die Pellet Machine/Feed Pellet Machine with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Machine with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Machine with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole Pellet production line from the volume 0.5 ton to 20 T/h.
