Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: TONY
  • Model Number: TYJ560-II efb pellet mill
  • Voltage: 380V
  • Power(W): 90+1.5+0.37kw
  • Dimension(L*W*H): 2600mm*1300mm*2300mm
  • Weight: 6T
  • Certification: CE
  • Warranty: 1 Years Guarantee expect the wear spare parts
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 1-1.5Ton Per Hour
  • Working Life for Die: 2500-3000Hours
  • Working Life for Rollers: 1500-2000Hours
  • Color: Green and Yellow
  • Raw material: Peanut Shell
  • Application: Make Biomass Pellets
  • Usage: Biomass Energy Industry
  • Motor: Electric Motor

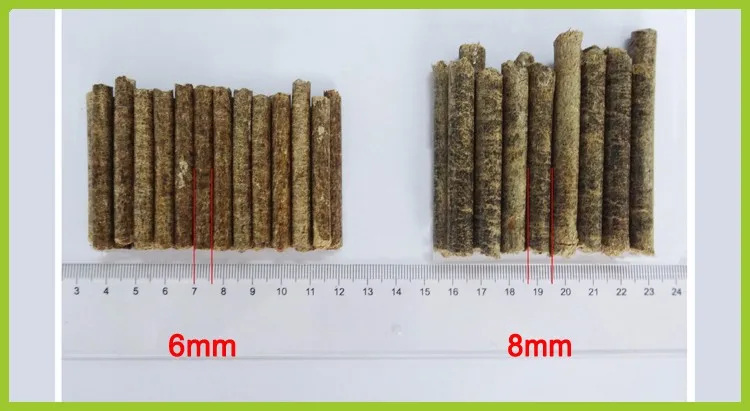

  • Pellet diameter: 4-12mm Pellet Granulator
  • Name: efb pellet mill

Packaging & Delivery

Packaging Details Wooden case for Biomass efb pellet mill
Delivery Time Shipped in 10 days after payment
Product Description

Tony TYJ560 Series CE approve 2016 good price efb pellet mill

Zhangqiu Tony Made Machinery CO.,LTD

Good Enterprise Qualification,

Strong Technical Strength,

Leading Manufacture of Biomass Pellet Equipment

Contact:

Ms Peggy Zhang

Skype:macy356

Phone:0086-15853149688

Email:Pelletmill03 AT tonyjixie.com

We mainly manufacture the pellet machines as following:

1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.

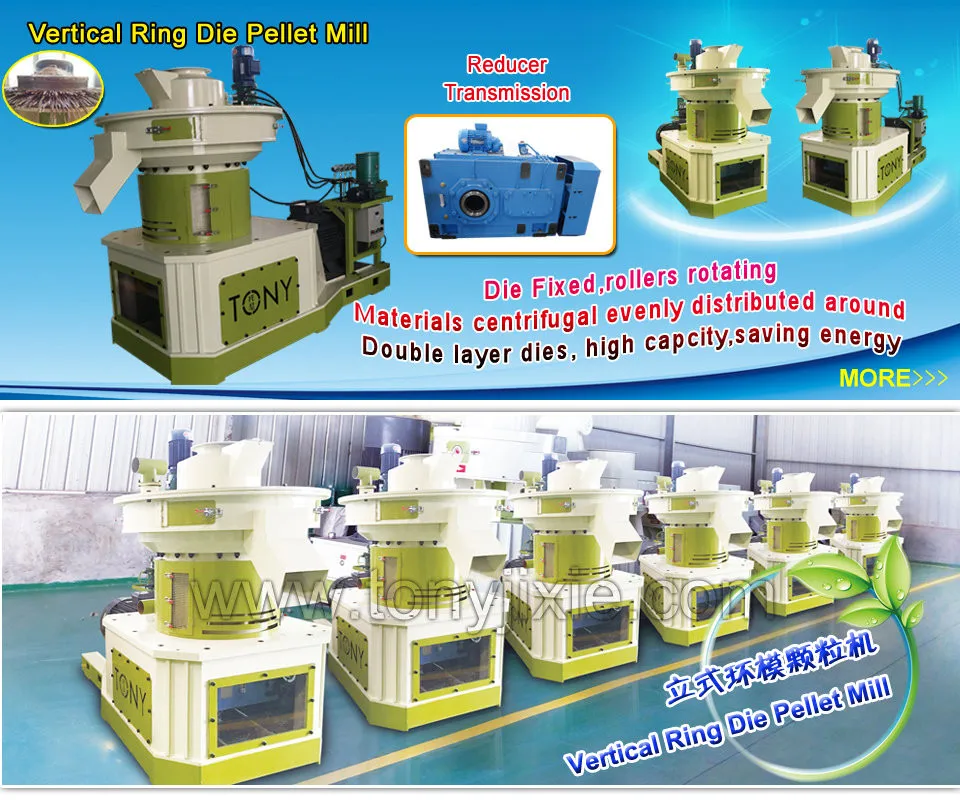

Detailed Introduction of Tony Biomass Wood Pellet Machine TYJ560 series:

Special Features of TONY Biomss Wood Pellet Machine TYJ560 series:

1.Vertical hopper: This design can avoid the raw material be stuck in granulating room.
2.Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost.
4.Bearing: High precision, high speed, low noise, long life
5.Unique automatic lubricating system: Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 24 hours.

Double layers with                        Two Rollers as a group to                    SKF brand bearings.                 Self-lubrication system to

nickel stainless steel.                 ensure high efficiency.                                                                                  keep machine work for 20h.

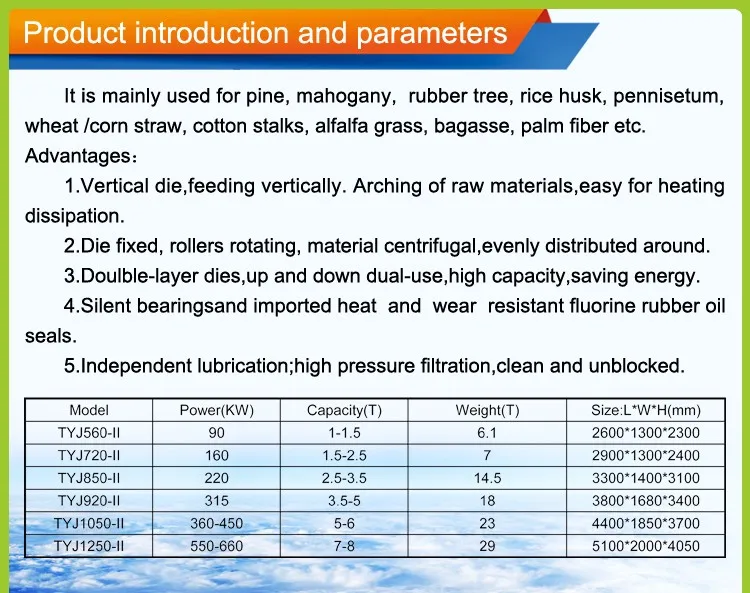

                                                        Tech Datas of Ring Die Pellet Machine With Reducer Driver
Model
Power(KW)
Capacity(T)
Weight(T)
Size(mm)
TYJ560-II
90
1-1.5
6.1
2600*1300*2300
TYJ720-II
160
1.5-2.5
7
2900*1300*2400
TYJ850-II
220
2.5-3.5
14.5
3300*1400*3100
TYJ920-II
315
3.5-5
18
3800*1680*3400
TYJ1050-II
360-450
5-6
23
4400*1850*3700
TYJ1250-II
550-660
7-8
29
5100*2000*4050

Advantages of Tony Ring Die Biomass Wood Pellet Machine TYJ560 series:

TONY biomass Ring Die Pellet Machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die pellet machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die pellet machine.

Requirements for raw materials of Tony Biomass Wood Pellet Machine:

Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size: Less than 5mm (All the raw materials must be crushed into sawdust before going to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.

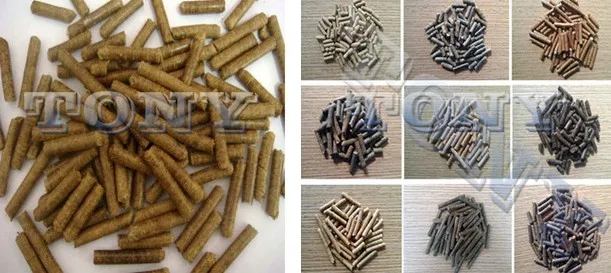

Pellets

Complete Pellet Making Process/Full Wood Pellet Line:

The complete line through our R&D is manufactured for produce the wood pellets, Main equipments within it include Wood Crusher, Dryer, Storage bin, Screw Conveyor , pellet mill, Hoisting machine, Cooling and dusting machine and Packing machine.

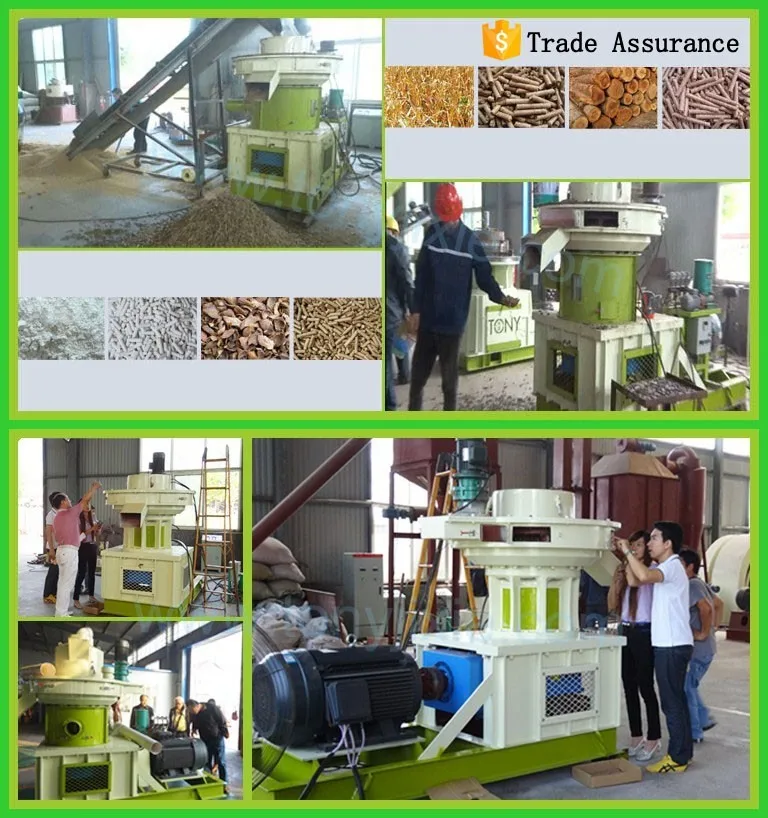

Cases and Service

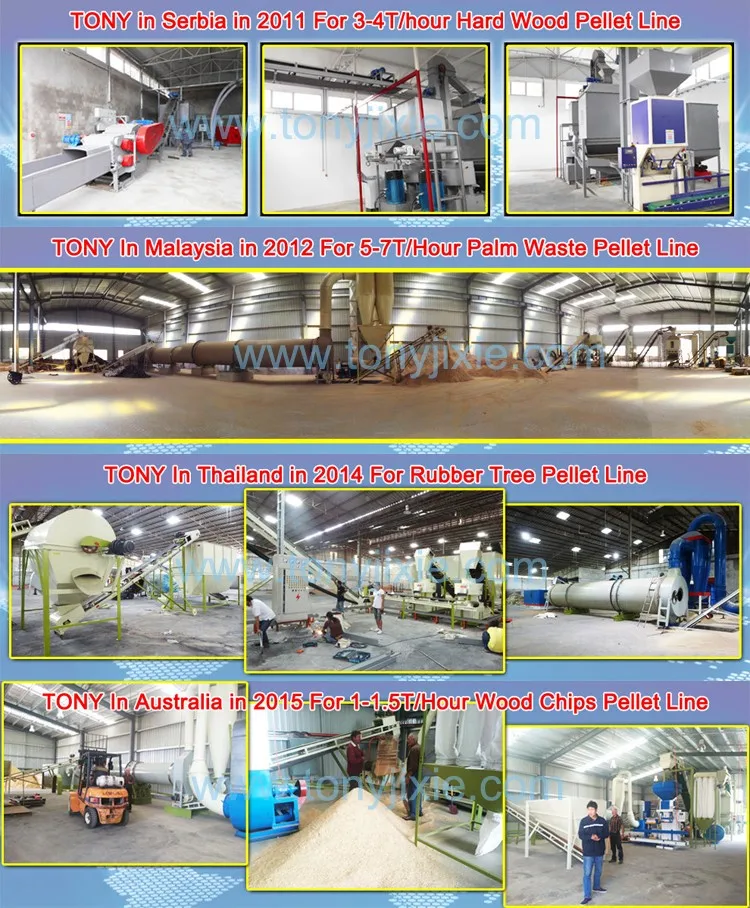

Successful experiences oversea:

Our products have been exported to lots of Europe, South America, Southeast Asia countries,Brasil ,Canada, Germany, America, South Africa, Australia, India,Vietnam, Malaysia and so on countries.

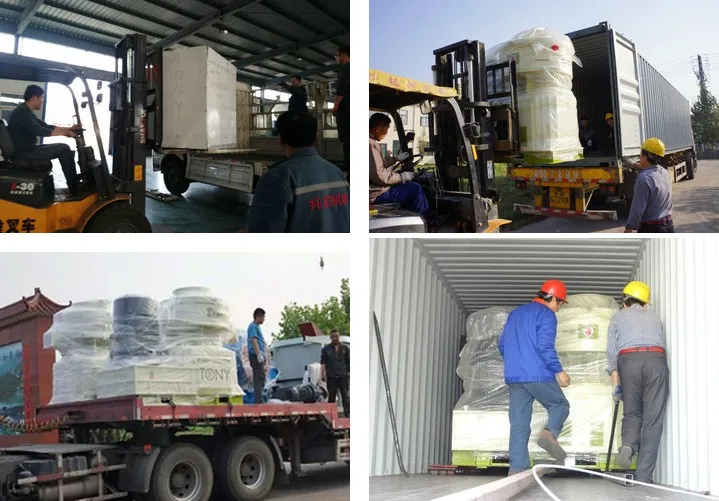

Packing and Delivery

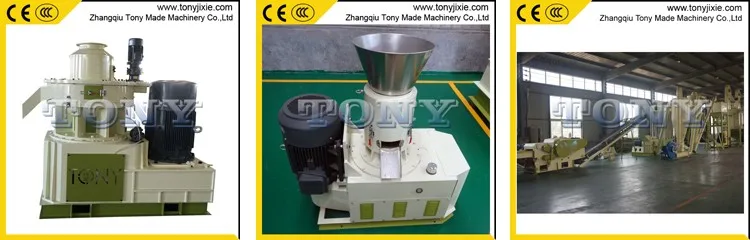

Tony Main Products

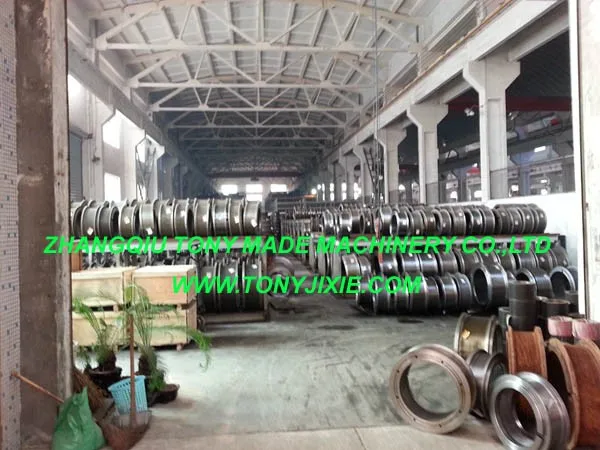

Why Choose Tony

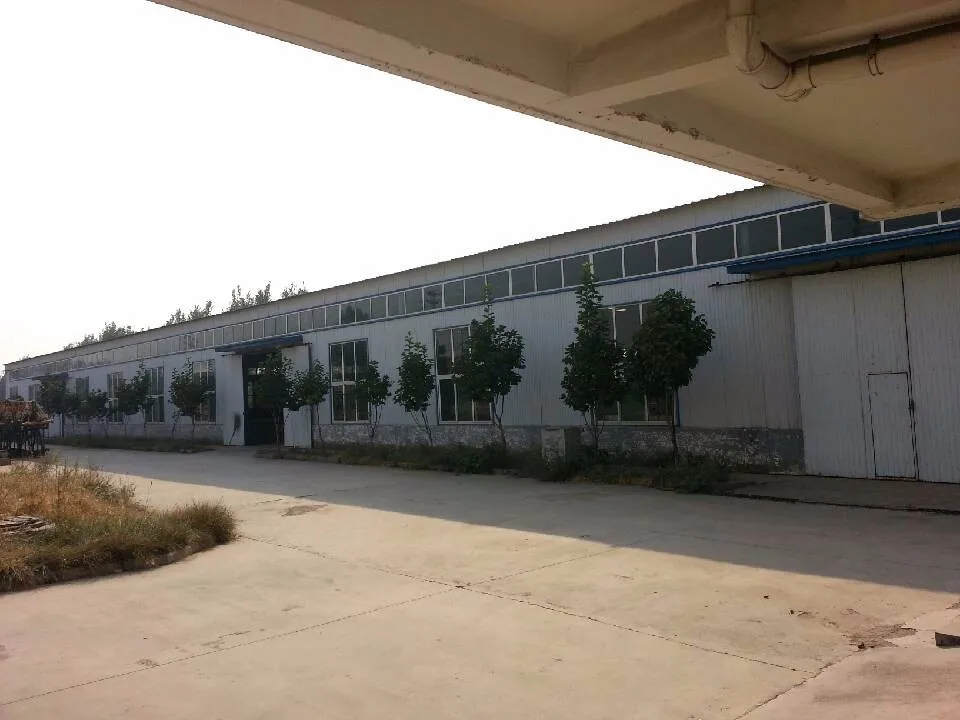

SHANDONG TONY ENVIRONMENTAL PROTECTION SCI-TECH CO.,LTD is an integrated enterprise specializing in development, production and sales, which is a professional pelleting equipment manufacturer for many years. Located in Zhangqiu,Jinan,North China, we enjoy convenient water, land, railway and air transportation.

We are a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill(flat die low temperature pellet mill, vertical ring die pellet mill,),feed pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.

Frequency Questions:

1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.
You can fly to Jinan airport and then we will pick you up(40 minutes by car) .
All our clients are warmly welcome to visit us!

3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE authentication
.

How to inquire about our pellet making machine or pellet production line:

When sending inquiry, pleases remember to write down the following information:
1. What's the capacity you plan to produce?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
6. What's your country voltage?

Contact Information:

Miss Peggy Zhang (Sales Manager)
Skype:macy356
Mobile/WhatsApp: + 86 15853149688
QQ: 2480212074
Email: Pelletmill03ATtonyjixie.com/tonypelletmill05@ hotmail.com

-------------------------------------------------------------------------------------
 Green Energy Drives The Future!
Get In Contact & Make Your Own Pellets Today!

                                                                                           - TONY MADE MACHINERY CO.,LTD



Best Service:
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
